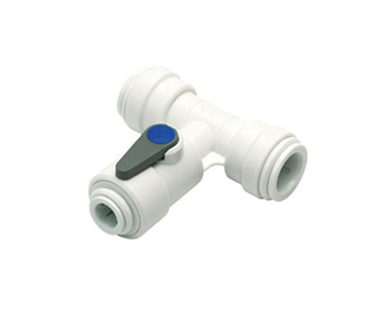

1/4 Inch Angle Stop Valve
John Guest Speedfit angle stop valves are for use with potable water and have been designed to allow temporary servicing of downstream equipment.
Features:
The ASV3 for 1/4 inch tubing.
Push-fit technology
Quick disconnection without the need for tools
Food Quality and suitable for potable liquids
Suitable for soft metal or plastic tubes
Suitable for air or inert gases
Superior flow characteristics
John Guest Speedfit angle stop valves are for use with potable water and have been designed to allow temporary servicing of downstream equipment
The ASV3 for 1/4 inch tubing and ASV4 for 3/8 inch tubing provide an in-line push-fit connection with shut off and check valve protection for easy installation of water coolers, filtration equipment, Reverse Osmosis and vending machines.
This valve tee is an ideal quick connect replacement for the standard Feed Water Clamp.
John Guest Angle Stop Valves are manufactured in Acetal with EPDM O-Rings. They incorporate a single check valve and a 1/4 turn shut-off valve.
Working Pressures and Temperatures
Water 12 Bar at 20°C
6 Bar at 65°C
Features
Acetal Angle Stop Valve Water Feed Connector
Push fit 15mm in-line connection with outlet to provide a 1/4 inch water feed
Quick disconnection without the need for tools
EPDM O-Rings
Intended for use with potable water
Incorporates integral style check valve and a 1/4 turn ball valve
Not suitable for air or inert gases
Push-fit and demountable connections
Lead free and non toxic
No scale build up and Corrosion Free
BSI and WRAS approved
