Vyair 5 Stage Reverse Osmosis Water Filter System With Booster Pump (200 GPD)

Product ID:

261

Price:£263.99

OUT OF STOCK

5 Stage Boosted Reverse Osmosis Water Filter System + Dual Membranes 200 Gallons of Water Per Day

A Unique 200 GPD Reverse Osmosis System arrives fully assembled with dual membranes with booster pump built in!

A 200 Gallon Per Day Reverse Osmosis System perfect for producing pure water for use with aquariums, window cleaning, and car washing

This system can fit neatly in to your undersink cupboard or in tight fit spaces. No plumbing skills are required as arrives with everything you need to install with full instructions. For "on demand" drinking water systems, please see Drinking Water Filters

Benefits

Pre-assembled RO Unit Producing 200 Gallons (800 Litres) of water per day

Built in Booster Pump guarantees optimum filtration with perfect flow

Removing up to 99% of tap water contaminants including bacteria and viruses

Superior high capacity 10 inch Sediment, Carbon Block and Granular Activated Carbon Pre-filters

Includes a built in membrane flush system which reduces fouling to extend membrane life

Excellent reduction in Total Dissolved Solids (TDS)

Ideal for collecting RO water at home for aquarium systems

Eliminates streaks and hard water spots on surfaces so perfect for window cleaning and car washing

Prevents scale build up on appliances to extend product life

Produces filtered water on demand

Produces pure drinking water on demand when combined with a post remineraliser filter

Can be floor standing or wall mounted

Filter Stages

Stage 1 - Sediment Pre-Filter: For the removal of sediments, dirt, sand and rust.

Stage 2 - Carbon Block Pre-Filter: removes chlorine and organic chemicals that contribute to bad taste and odours.

Stage 3 - GAC Pre-Filter: a bed of granular activated carbon that absorbs chlorine and organic chemicals to improve taste and odour.

Stage 4 & 5 - Membrane: Reverse Osmosis membranes are semi-permeable removing up to 99% of contaminants present in water including viruses, bacteria, heavy metals, fluoride, hormones, silica and salts.

The effectiveness and productivity of RO systems increase with greater water pressure and temperature. The actual flow rate (in GPD) of any reverse osmosis system depends on your home water pressure and temperature.

Dual Membranes reduce the amount of waste water produced and the built in booster pump will help where inlet water pressure is low or inconsistent to maintain the right amount of pressure the membranes need to produce double the amount of good quality pure water.

Please note the colour may slightly vary from the picture however the unit funtionality will remain the same. Stock at the moment is white pre filters, clear post filter and grey membrane housings.

Ideal for aquariums, window cleaning and car washing. Can also be used for drinking water when combined with our pressure tank kit and/or the dispensing tap with pressure valve.

Downloads section below for RO Unit Set Up, installation and maintenance guidance, and we provide technical and sales support.

All reverse osmosis systems are shipped fully assembled, it is simple enough to insert filters and connect to a water supply and waste water drain.

{Whats in the box!}
The RO Systems includes

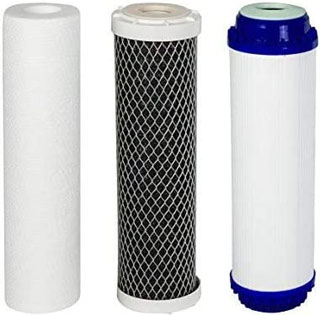

1 x 5 micron polypropylene pre filter
1 x Activated carbon block cartridge
1 x Granular Activated Carbon Pre-filter

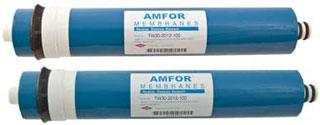

2 x RO-3012-100 Membrane - RO Membrane Reduces heavy metals, salts, bacteria and viruses

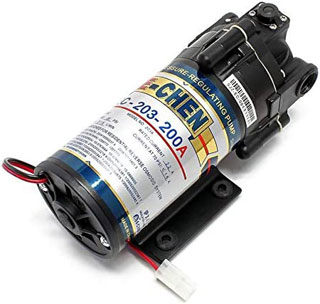

1 x Self Regulating Booster Pump

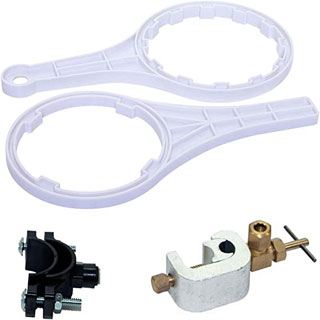

1 x RO and Filter Housing Spanners
1 x 5M Tubing - 5 meters of 1/4" tubing
1 x 1200cc Flow Restrictor
1 x Flush Valve
1 x High Pressure Switch
1 x Low Pressure Switch
1 x Drain Saddle Valve
1 x Feed Water Clamp

{More Info}
Manufacturers recommend 60 psi is required at the membrane for full production, not everyone's cold water is at 60 psi and 77 degrees F; therefore, you might get less than 50 GPD, perhaps 50% or even less if your pressure and temperature are very low! Please consider these factors before you finally decide on which system is best for you.

System Specifications

System Dimensions mm – H 480 x W 375 x D 250
System Weight – 9kg
Inlet Feed Connection – 3/8" Pushfit
Outlet Feed Connection – 1/4" Pushfit

Filter Replacement

Pre-filters should be replaced every 6 months or 2500gallons (or when visibly dirty) . If any of your pre filters are exhausted, using the unit will put additional pressure on the membrane. Filters are much cheaper to replace than a damaged membrane, which are also available on the website.

Pump Care

Do not run a pump continuously for more than 4 hours or allow a pump to run dry. Doing so will cause the pump to overheat and become damaged. So that you do not need to manually turn the system on and off every 4 hours, we suggest installing a timer to give the pump a thirty minute break so that it will cool down. We also recommend you install a low pressure switch before your pump so that it does not run dry with little feed flow. A pump should also be mounted using the built in mounting holes to stop the pump from getting damaged through uncontrolled vibration.

If any of the above directions are not followed, the warranty of the pump will be null and void. We will ask for evidence of you following the above directions and will not issue a warranty replacement without any.
